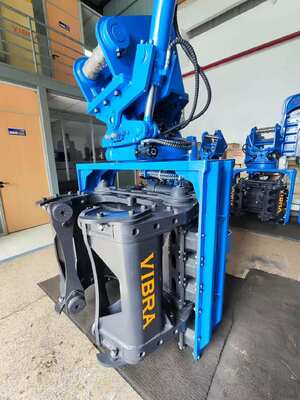

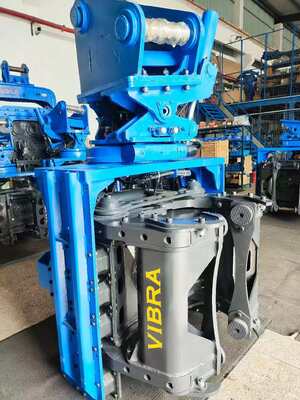

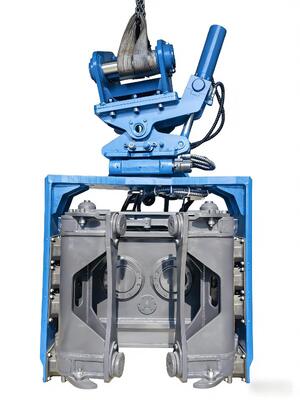

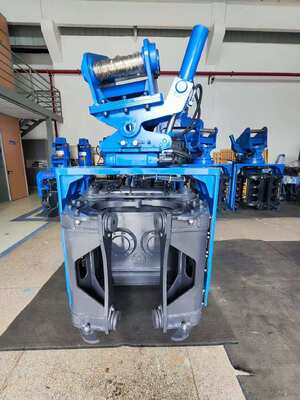

Side Grip Pile Driver SV-400 656kN Hydraulic Vibratory Hammer For Excavators

The Side Grip Pile Driver SV-400 is a high-performance hydraulic vibratory hammer designed for efficient sheet pile driving and extraction in confined construction environments. Mounted on 32-40 ton excavators, this Side Grip Pile Driver provides powerful vibration force, flexible positioning, and precise pile handling.

Unlike traditional top-mounted pile hammers, the Side Grip Pile Driver clamps the pile from the side, allowing construction in restricted spaces such as under bridges, inside factory buildings, or near existing structures. This design improves safety, efficiency, and installation accuracy.

The SV-400 model delivers 656kN centrifugal force and up to 3000 rpm vibration frequency, ensuring fast and stable pile driving performance for demanding infrastructure projects.

The SV-400 Side Grip Pile Driver generates up to 656 kN centrifugal force, providing strong penetration capability for steel sheet piles, pipe piles, and concrete piles.

The advanced hydraulic system allows 360° rotation and ±30° tilt, enabling operators to accurately position piles without repositioning the excavator.

The machine provides:

• Side clamp force: 465 kN
• Bottom clamp force: 520 kN

This ensures safe and stable gripping of piles during driving operations.

The Side Grip Pile Driver can operate in confined environments where traditional pile drivers cannot work, such as:

• urban construction sites
• bridge foundations
• tunnels
• port and harbor projects

Powered directly by the excavator hydraulic system, this Side Grip Pile Driver eliminates the need for separate piling rigs, reducing equipment costs and improving mobility.

The Side Grip Pile Driver is widely used in infrastructure and foundation engineering projects such as:

Efficient installation of steel sheet piles for bridge foundations.

Suitable for high-rise buildings and deep foundation works.

Driving piles for dock structures and retaining walls.

Ideal for construction sites with limited space or height restrictions.

• 15+ years of pile driving equipment manufacturing experience
• High-efficiency hydraulic vibration technology
• OEM and customized solutions available
• Global export to Southeast Asia, Middle East and South America
• Reliable after-sales service and spare parts support

A Side Grip Pile Driver is an excavator-mounted hydraulic vibratory hammer that clamps piles from the side to drive them into the ground, making it suitable for confined construction sites.

The Side Grip Pile Driver can drive:

• steel sheet piles
• pipe piles
• H-beams
• concrete piles

The SV-400 Side Grip Pile Driver is designed for 32-40 ton excavators.

Yes. The side clamp design allows the machine to work in low clearance and narrow construction areas, such as under bridges or inside industrial facilities.
