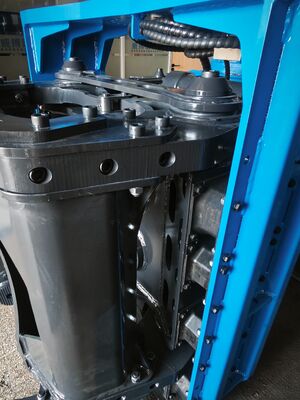

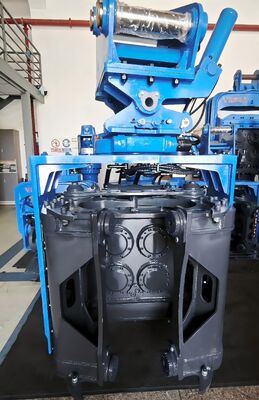

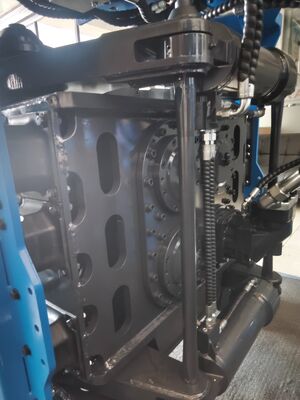

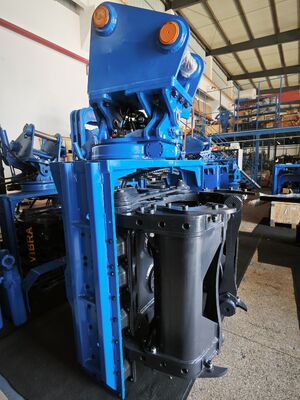

SV-400 Side Grip Pile Driver Made In China – Adjustable Impact Frequency Control & Precise Positioning Servo Control for 32–40 Ton Excavators

The SV-400 Side Grip Pile Driver Made In China is a heavy-duty hydraulic vibratory hammer attachment engineered to transform standard 32–40 ton excavators into high-capacity piling rigs. Designed specifically for low-clearance and narrow-access construction environments—such as factory retrofits, bridge underpinning, urban drainage projects, and underground parking extensions—the SV-400 delivers exceptional power and precision where traditional piling equipment simply cannot operate.

With a proven track record across Southeast Asia, India, and Russia, this Side grip pile driver Made In China is trusted by contractors who demand reliability in extreme climates, operating reliably down to -30°C with appropriate hydraulic oil. It handles the complete piling cycle—clamping, positioning, driving, and extraction—without requiring a crane or auxiliary equipment.

1. Side grip pile driver Made In China – Built for Low Clearance & Narrow Sites
   The SV-400 integrates both a side clamp and a bottom clamp, enabling pile driving and extraction in vertical clearances as low as 3.8 meters. This low headroom operation capability allows you to work confidently under low bridges, inside warehouse mezzanines, within basement levels, or beneath power lines—places where conventional piling rigs simply cannot enter. Measuring only 1,400mm (L) × 1,315mm (W) × 3,056mm (H), the compact structure allows the SV-400 to fit through standard industrial doorways and between pillar spacings of 3.5 meters. No expensive site widening, no special transport permits—just drive your excavator in and start working.
2. Adjustable Impact Frequency Control Manufacturers China – Adapt to Any Soil Condition
   The SV-400 features adjustable impact frequency control with a wide operating range from 2,300 to 5,000 rpm. This Adjustable impact frequency control Manufacturers China technology allows operators to match vibration frequency to specific ground conditions—whether soft clay, dense sand, gravel, or frozen ground. By fine-tuning the frequency output, contractors can optimize penetration rates, reduce soil resistance, and achieve faster cycle times across varying geological formations. Lower frequencies are ideal for dense, compacted soils where maximum energy transfer is required, while higher frequencies excel in looser formations where rapid vibration accelerates pile descent. This adaptability is particularly valuable in the diverse geological conditions found across Southeast Asia (variable alluvial soils), India (mixed laterite and black cotton soils), and Russia (permafrost and frozen ground).
3. Precise Positioning Servo Control China – ±0.5° Accuracy for Flawless Alignment

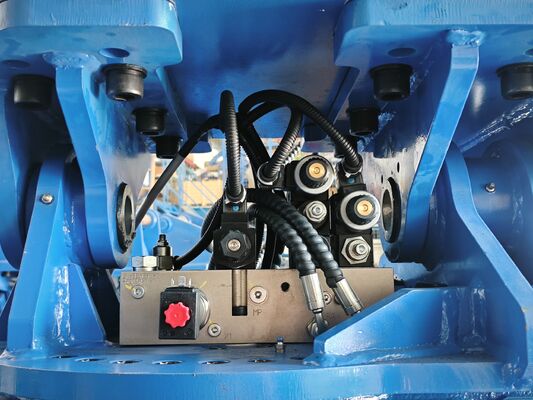

   The SV-400 integrates precise positioning servo control China technology that uses proportional valves and position sensors to manage rotation and tilt with exceptional accuracy. Operators can set the desired pile angle (e.g., 15° tilt) and the servo system maintains it automatically, repeatable to ±0.5° accuracy. This eliminates manual guesswork, reduces pile waste, and speeds up installation—critical for interlocking sheet pile walls, solar farm rows, and precision foundation work. The 360° continuous rotation combined with ±30° bidirectional tilt allows operators to position piles at any angle without repositioning the excavator. A hydraulic rotary union enables unlimited rotation without hose twisting, saving hours of repositioning time on crowded urban sites.
4. High Frequency Vibration Output Manufacturers – 656 kN of Penetrating Power
   As a premier High frequency vibration output Manufacturers solution, the SV-400 delivers an impressive 656 kN centrifugal force. This high frequency vibration output rapidly transmits vertical vibrations through the pile body, causing changes in soil structure around the pile and reducing soil strength for faster penetration. The combination of high frequency output (up to 5,000 rpm) and substantial eccentric moment (6.6 kgm) ensures rapid pile driving in even the most challenging ground conditions. Whether you are driving steel sheet piles, H-beams, or large-diameter pipe piles, the SV-400's high frequency vibration output Manufacturers engineering delivers consistent, reliable performance project after project.
5. Precise Positioning Servo Control Factory – Direct Quality Assurance
   Manufactured at a Precise positioning servo control Factory with ISO 9001:2015 certification, the SV-400 undergoes rigorous quality control throughout production. Every unit is tested to ensure the servo control system maintains angle accuracy to ±0.5°, the hydraulic system delivers full 656 kN force at 32 MPa operating pressure, and the dual-clamp system provides secure gripping. The precision servo control factory direct supply chain ensures consistent quality, faster delivery (15–20 days), and competitive pricing—critical advantages for contractors in emerging markets.
6. Heavy-Duty Dual-Clamp System for Maximum Control
   The SV-400 features a heavy-duty dual-clamp system that securely holds piles from both the side and bottom. With 465 kN of side clamp force and 520 kN of bottom clamp force, the SV-400 handles heavy piles securely, preventing slippage during driving or extraction. The multi-function clamp interface can be quickly swapped out to handle different pile types, including steel sheet piles (Larssen, straight web, U-type), H-beams (wide flange, HP sections), and circular pipe piles. This versatility means one machine can handle multiple pile types on the same project, reducing equipment needs and rental costs.
7. Dual Pump Flow Merging System – Maximum Power from Your Excavator
   Many 32–40 ton excavators have auxiliary hydraulic flow below the required 280 L/min. The SV-400's dual pump flow merging system combines two separate pump outputs into a single high-flow circuit (up to 360 L/min). This ensures the SV-400 delivers its full 656 kN centrifugal force even when your machine's individual pump flow is modest—a critical advantage for older fleets commonly found in India and Russia. The merging valve is integrated and pre-calibrated—no external controls needed.
8. Easy Installation & Low Maintenance
   Installation on excavators is straightforward, requiring only minor modifications—typically 2–3 hours for first fit, then 30 minutes for changeover. The SV-400 uses the excavator's own hydraulic system, making operation simple and service access easy. The reinforced frame and high-capacity hydraulic motor are built to withstand continuous use in the toughest job site conditions.

Southeast Asia: The SV-400 excels in urban infrastructure projects across Singapore, Malaysia, Indonesia, Thailand, and Vietnam. Its compact structure confined spaces design allows work between closely spaced buildings, while adjustable impact frequency control adapts to variable alluvial soils and soft marine clay. Perfect for drainage maintenance, river-bank protection, and marshland piling jobs.

India: With its diverse geology—from the alluvial plains of the Ganges to the laterite soils of the Deccan Plateau—India demands versatile piling equipment. The SV-400's Adjustable impact frequency control Manufacturers China technology allows contractors to optimize frequency for each soil type, while the dual pump flow merging system compensates for older excavator fleets with lower individual pump flow. Ideal for bridge foundations, industrial plant construction, and high-rise building sites across Mumbai, Delhi, and Chennai.

Russia: Operating reliably down to -30°C with appropriate hydraulic oil, the SV-400 is built for Siberia's extreme cold and frozen ground conditions. The high frequency vibration output (up to 5,000 rpm) effectively penetrates frozen soils and permafrost, while the compact dimensions (1,400 × 1,315 × 3,056 mm) reduce transport costs—multiple units per container to remote Siberian sites. Perfect for pipeline foundations, bridge abutments, and industrial infrastructure across Russia's vast construction landscape.
