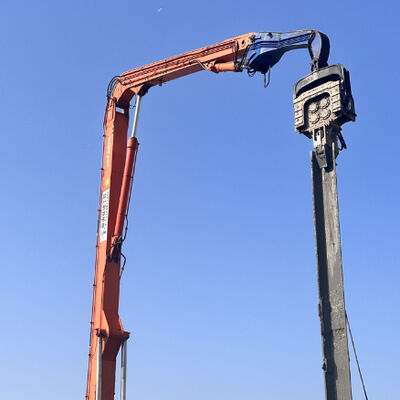

27M Max-Length Pile Driver for 75-80 Ton Excavator, High-Frequency Impact & Quick-Install Mast

  • 27M Max-Length Pile Driver for 75-80 Ton Excavator, High-Frequency Impact & Quick-Install Mast
  • 27M Max-Length Pile Driver for 75-80 Ton Excavator, High-Frequency Impact & Quick-Install Mast
  • 27M Max-Length Pile Driver for 75-80 Ton Excavator, High-Frequency Impact & Quick-Install Mast
Lugar de origem China
Marca VIBRA
Certificação ISO 9001:2015
Número do modelo FV-800
Quantidade de ordem mínima 1 conjunto
Preço Negociável
Detalhes da embalagem 4 a 10 CBM
Tempo de entrega 7-30 dias
Termos de pagamento T/T
Habilidade da fonte 15 SETS/MONTH

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Frequência de vibração 2500 rpm Pressão operacional 32 MPa
Nome do produto Bate-estaca hidráulica Peso 4200kg
Peso do braço 1100 kg Material de pilha adequado Concreto, aço, madeira
Peso do martelo 3150 quilogramas Escavadora 75 ~ 85 toneladas
Força Centrífuga 997 KN Momento excêntrico 14,5 kg
Destacar

27M max-length hydraulic pile driver

,

High-frequency impact pile driver

,

Quick-install mast excavator pile driver
Deixe um recado
Descrição de produto

Four-Eccentric Hydraulic Pile Driver – The Fastest Way to Drive & Extract Piles in Southeast Asia, India & Russia

Product Keyword: pile driver

  1. What it is

    The VIBRA Four-Eccentric Hydraulic Press-in Pile Driver is a excavator-mounted, high-frequency vibratory pile driver that can push or pull sheet piles, H-beams, tubes or precast concrete piles in minutes instead of hours. Built in China, proven on ports in Indonesia, metro lines in Mumbai and oil-gas yards in Siberia, it is the one pile driver contractors trust when schedules are tight and soil is tough.

  2. Five headline features
    • Four eccentric gears give 360° balanced force – no pile tilt, no re-alignment downtime.
    • 20 m/min crowd & extraction speed – finish 30 m long pile in 15 min, cut diesel cost 30%.
    • 2 000 kN crowd force – penetrates hard laterite, dense sand or frozen clay without pre-drilling.
    • One operator controls everything from the cabin radio remote – no labor standing on the mast.
    • Swap from pitch to drive to extract with a joystick – keep the same pile driver all day.
  3. Advantages for SEA, India, Russia
    • Tropical downpour or –40 °C frost, sealed IP66 motor keeps the pile driver running.
    • Works on 48-100 ton carriers you already own – no new crane investment.
    • 4-10 CBM sea-worthy plywood case fits one 20 GP container; freight to Jakarta, Mumbai or Vladivostok below 1 000 USD.
    • Local language decals (Bahasa, Hindi, Russian) and 7-day on-site start-up service available.
    • Spare parts kept in Surabaya, Chennai and Moscow; 72 h delivery promise.
  4. Technical Parameters (pile driver family)
    Model FV-500 FV-600 FV-700 FV-800 FV-900
    Vibration (rpm) 2800 2700 2600 2500 2400
    Centrifugal Force 759 kN 818 kN 915 kN 997 kN 1 064 kN
    Max. Pile Length 18 m 21 m 24 m 27 m 32 m
    Operating Pressure 30 MPa 32 MPa 32 MPa 32 MPa 32 MPa
    Hammer Weight 3.5 t 3.75 t 3.85 t 4.2 t 4.35 t
    Arm Weight 0.75 t 0.9 t 1.0 t 1.1 t 1.2 t
    Excavator Class 48-52 T 50-65 T 65-75 T 75-85 T 85-100 T
    Package Volume 4 CBM 5 CBM 6 CBM 8 CBM 10 CBM
    Crowd / Extract 20 m/min & 2 000 kN on all models
    Pulling Force 2 000 kN (equal to crowd)
    Power Source Diesel engine of carrier excavator – no extra genset
    Certification ISO 9001
  5. Typical Applications
    • Port sheet-pile wharves in Batam, Jakarta, Chittagong.
    • Metro diaphragm wall guide beams in Delhi, Bangalore, Kolkata.
    • River flood barriers along the Mekong, Irrawaddy, Brahmaputra.
    • Oil & gas pipe-rack foundations in Novosibirsk, Surgut.
    • Bridge abutments on the Mumbai-Goa expressway.
    • Temporary cofferdams for Russian LNG plants in Yamal.
  6. FAQ – the questions we get every day

    Q1: Is this pile driver really faster than a drop hammer?

    A: Yes. Drop hammer averages 3-5 m/h; our vibratory pile driver reaches 20-30 m/h in sandy soils, saving 5-7 days per 100 piles.

    Q2: Can I mount it on an old 20-ton excavator?

    A: No. Minimum carrier is 48 ton; otherwise hydraulic flow is too low and the pile driver will stall. We help check your pump spec before order.

    Q3: How long is delivery to India?

    A: Standard FV-800 in stock, 7 days ex-works; sea freight to Chennai 12 days, total 19 days door-to-door with clearance.

    Q4: Do you send an engineer for start-up?

    A: One Russian/English speaking technician is included for 7 days; you only pay visa, flight and hotel.

    Q5: What consumables should I stock?

    A: Eccentric bearings, rubber dampers, remote batteries – we give you a one-year spare-part list priced under 1 % of pile driver value.

    Q6: Will it pull piles as well as drive?

    A: Absolutely. Same 20 m/min speed and 2 000 kN force; just switch the hydraulic direction and clamp the pile upside-down.

    Q7: How loud is it?

    A: 75 dB at 7 m – half of a diesel impact hammer. Meet city noise limits in Bangkok, Mumbai, Moscow without night-work restrictions.

  7. Price & Terms

    MOQ: 1 set. Price: open negotiation, guide figure FOB Qingdao 48 000-98 000 USD according to model. Payment: 30 % T/T advance, 70 % against BL copy; or 100 % irrevocable LC at sight. Supply ability: 15 sets pile driver per month. Warranty: 12 months.

  8. Next step

    Send us your excavator brand, model and the pile length you handle most. We will recommend the exact pile driver model, freight cost and arrival date in 12 hours. Let the VIBRA Four-Eccentric pile driver drive your next project to the finish line – faster, quieter and cheaper than any other pile driver on the market.
